High purity Silicon oxide / Silicon dioxide / SiO2 / Silica quartz powder 99%-99.999% with nano and micron particles
Brief introduction
Product name: Silicon oxide SiO2
Purity: 99%-99.999%
Particle size: 20-30nm, 50nm, 100nm, 45um, 100un, 200um, etc
Type: hydrophilic, hydrophobic

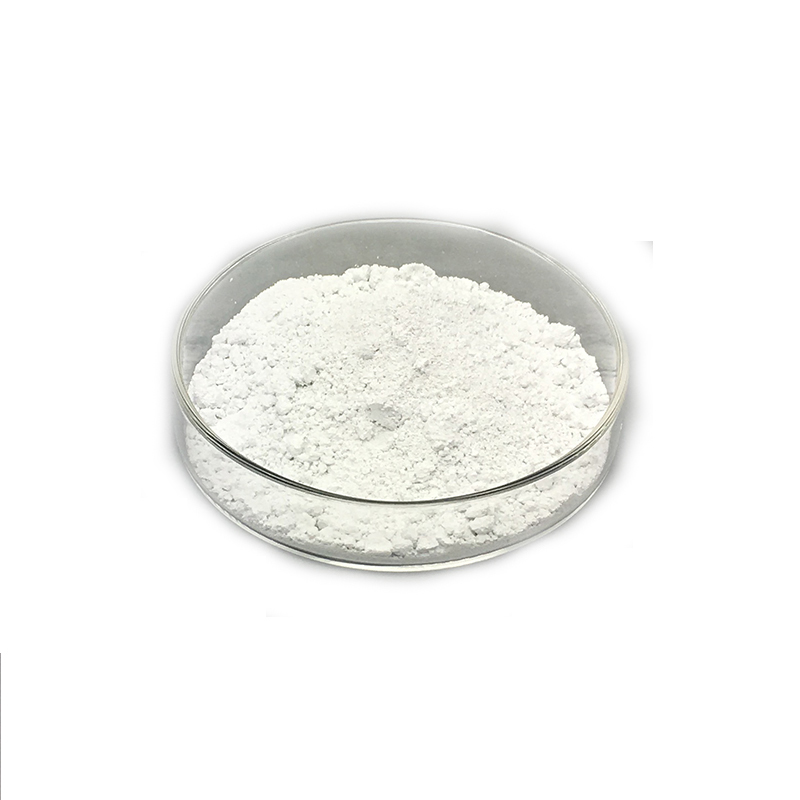

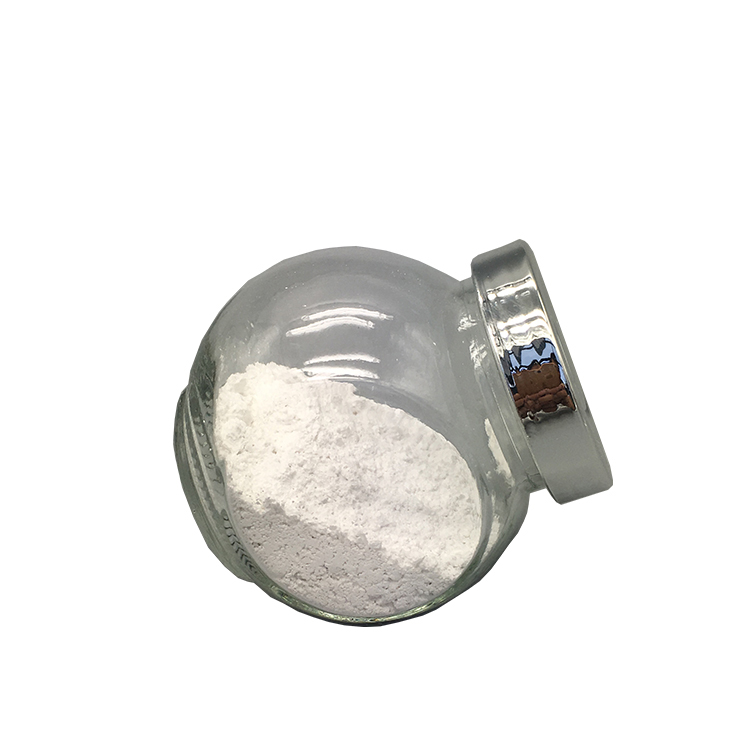

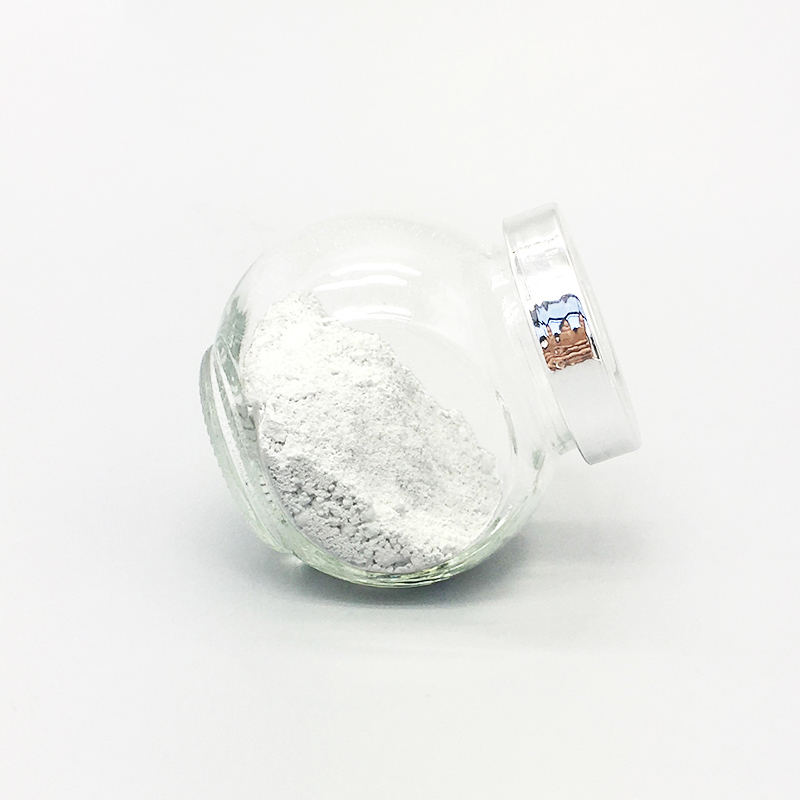

Color: white powder
Bulk Density: <0.10 g/cm3
True Density: 2.4 g/cm3
Ultraviolet Reflectivity:>75%.
Purity: 99%-99.999%
Particle size: 20-30nm, 50nm, 100nm, 45um, 100un, 200um, etc
Type: hydrophilic, hydrophobic
Color: white powder
Bulk Density: <0.10 g/cm3
True Density: 2.4 g/cm3
Ultraviolet Reflectivity:>75%.
Features:
Nano-silica particles according to their structure are divided into two types: P-type (Porous particles ) and S-type (Spherical particles). P-type nano-silica surface contains a number of nano-porous with the pore rate of 0.611ml /g; therefore, P-type has much larger SSA comparing to S-type (See US3440). US3436 is S-type and its SSA is ~170-200m2/g. Further more, P-type ultraviolet reflectivity is >85% , S-type: >75%.
Specificaiton
|
Product
|
Silicon oxide
|
||
|
Particle size
|
100um
|
||
|
Quality
|
GB/T 3185-2016
|
Quantity:
|
5000.00kg
|
|
Batch No.
|
18120612
|
Expiry Date
|
Dec. 05, 2020
|
|
Date of Manufacturing:
|
Dec. 06, 2018
|
Date of Test:
|
Dec. 06, 2018
|
|
Test Item
|
Specification
|
Results
|
|
|
Appearance
|
White powder
|
White powder
|
|
|
SiO2
|
>99.99%
|
99.996%
|
|
|
Al
|
≤30 ppm
|
26.48 ppm
|
|
|
Ca
|
≤6 ppm
|
5.6 ppm
|
|
|
Cu
|
≤1 ppm
|
0.11 ppm
|
|
|
Fe
|
≤2 ppm
|
1.87 ppm
|
|
|
K
|
≤2 ppm
|
1.48 ppm
|
|
|
Mg
|
≤1 ppm
|
0.53 ppm
|
|
|
Na
|
≤5 ppm
|
4.69 ppm
|
|
|
Ni
|
≤0.5 ppm
|
0.03 ppm
|
|
|
Mn
|
≤0.3 ppm
|
0.11 ppm
|
|
|
Ti
|
≤4 ppm
|
3.68 ppm
|
|
|
Conclusion:
|
Comply to the enterprise standard
|
||
Test Methods:
1. Transmission electron microscopy (TEM) method, nano-silica particle has small size, narrow particle size distribution.
2. BET method, nano-silica particle has large specific surface area.
3. Infrared spectroscopy method, nano-silica particle exists a large number of hydroxyl groups and unsaturated residual bonds on its surface, and forms the deviation from the steady state of the silicon oxide structure.
4. Cary-5E spectrophotometer testing method, nano-silica particles--high reflectivity to long wave and visible light about UV.
5. Omnisorp100CX surface area and porosity analyzer, P-type nano-silica surface contains a number of nano porous with the pore rate of 0.611ml /g.
2. BET method, nano-silica particle has large specific surface area.
3. Infrared spectroscopy method, nano-silica particle exists a large number of hydroxyl groups and unsaturated residual bonds on its surface, and forms the deviation from the steady state of the silicon oxide structure.
4. Cary-5E spectrophotometer testing method, nano-silica particles--high reflectivity to long wave and visible light about UV.
5. Omnisorp100CX surface area and porosity analyzer, P-type nano-silica surface contains a number of nano porous with the pore rate of 0.611ml /g.
Application:
1 Rubber modified, sealant ceramic toughening modification, adhesives, functional fiber additive, plastic modification, paint
aging additives;
2 Ceramics, nano ceramic, composite ceramic substrate;
3 Polymer: can increase the thermal stability and anti-aging polymer;
4 Flame retardant materials and coatings, high grinding medium, cosmetic products;
5 In cluster butyl benzene and chlorinated polyethylene adding a small amount of nano SiO2 produce color rubber tenacity,
elongation, strength, flexural performance and ultraviolet resistance and thermal aging performance and achieve or exceed epdm;
6 In traditional coating adding a small amount of nano silicon oxides, good solve the suspension stability, thixotropy and poor, poor finish.
aging additives;
2 Ceramics, nano ceramic, composite ceramic substrate;
3 Polymer: can increase the thermal stability and anti-aging polymer;
4 Flame retardant materials and coatings, high grinding medium, cosmetic products;
5 In cluster butyl benzene and chlorinated polyethylene adding a small amount of nano SiO2 produce color rubber tenacity,
elongation, strength, flexural performance and ultraviolet resistance and thermal aging performance and achieve or exceed epdm;
6 In traditional coating adding a small amount of nano silicon oxides, good solve the suspension stability, thixotropy and poor, poor finish.
